Introduction

MQTT as an open network protocol and OPC UA as an industry standard for data exchange are the two most common players in the IIoT sphere. Often, MQTT (Message Queuing Telemetry Transport) is used to connect various applications and systems, while OPC UA (Open Platform Communications Unified Architecture) is used to connect machines. Additionally, there are also applications and systems that support OPC UA, just as there are machines or devices that support MQTT. Therefore, when it comes to providing communication between multiple machines/devices and applications that support different protocols, a couple of questions might arise. First, how to bridge the gap between the two protocols, and second, how to do it in an efficient, sustainable, secure and extensible way.

This article discusses the main aspects of MQTT and OPC UA and illustrates how these protocols can be combined for IIoT solutions. The information presented here would thus be useful for IIoT architects.

MQTT and OPC UA: origins and characteristics

Both protocols are the most supported and most utilized in the IIoT. MQTT originated in the IT sphere and is supported by major IoT cloud providers, such as Azure, AWS, Google, but also by players specialized in industrial use cases, e.g. Adamos, Mindsphere, Bosch IoT, to name a few. The idea behind MQTT was to invent a very simple yet highly reliable protocol that can be used in various scenarios (for more information on MQTT see MQTT Basics). OPC UA, on the contrary, was created by an industry consortium to boost interoperability between machines of different manufacturers. As MQTT, this protocol covers core aspects of security (authentication, authorization and encryption of the data) and, besides, meets all essential industrial security standards (see BSI-study).

The nature of IIoT use cases

IIoT use cases are complex, because they bring together two distinct environments – Information Technology (IT) and Operational Technology (OT). Traditionally, the IT and OT worlds were separated from each other, had different needs and thus developed very different practices. One of such dissimilarities is the dependence on different communication protocols. The IT world is primarily influenced by higher level applications, web technology and server infrastructure, so the adoption of MQTT as an alternative to HTTP is on the rise there. At the same time, in the OT world, OPC UA is the preferable choice due to its ability of providing a perfectly described interface to industrial equipment.

Today, however, the IT and OT worlds gradually converge as the machine data generated on the shopfloor (OT) is needed for IIoT use cases such as predictive maintenance or optimization services that run in specialized IT applications and often in the cloud. Companies can therefore benefit from combining elements from both fields. For example, speaking of communication protocols, they can use MQTT and OPC UA along with each other. A company can choose what suits well for its use case’s endpoint and then bridge the protocols accordingly. If used properly, the combination of both protocols ensures greatest performance and flexibility.

Bringing MQTT and OPC UA together

As already mentioned above, applications usually rely on MQTT and machines on OPC UA. However, it is not always that straightforward. Equipment may also speak MQTT and MES systems may support OPC UA. Some equipment and systems may even support both protocols. On top of that, there are also numerous other protocols apart from MQTT and OPC UA. All this adds more dimensions to the challenge of using data in the factory.

This IIoT challenge can, however, be solved with the help of middleware. The middleware closes the gap between the IT and OT levels, it enables and optimises their interaction. The Cybus Connectware is such a middleware.

General Overview Cybus

The Cybus Connectware supports a broad variety of protocols – including MQTT and OPC UA – and thus makes it possible to connect nearly any sort of IT application with nearly any sort of OT equipment. In the case of OPC UA and MQTT, the bridging of two protocols is achieved through connecting four parties: OPC UA Client, OPC UA Server, MQTT Client and MQTT Broker. The graphic below illustrates how the Cybus Connectware incorporates these four parties.

Four parties Cybus

On the machines layer, different equipment can be connected to the Connectware. For example, if a device such as a CNC controller (e.g. Siemens SINUMERIK) that uses OPC UA should be connected, then the Connectware will serve as the OPC UA Client and the controller as the OPC UA Server. While connecting a device that supports MQTT (e.g. a retrofit sensor), the Connectware will act as the MQTT broker, and the sensor will be the MQTT client.

Likewise, various applications can be connected to the Connectware on the applications layer. In case of connecting services that support MQTT (e.g. Azure IoT Hub or AWS IoT / Greengrass), the Connectware will act as the MQTT client, while those services will act as MQTT brokers. If connecting systems that support OPC UA (e.g. MES), the Connectware will play the role of the OPC UA Server, while the systems will act as OPC UA clients.

The question may arise as to why not connect applications or systems that support a specific protocol directly to devices that support the same protocol, e.g. a SINUMERIK machine controller to a MES (which both “speak” OPC UA), or a retrofit sensor to the Azure IoT Hub (which both can communicate via MQTT)? Although this is theoretically possible, in practice it comes with fundamental disadvantages that can quickly become costly problems. A tightly coupled system like this requires far more effort as well as in depth protocol and programming skills. Such a system is then cumbersome to administer and not scalable. Most importantly, it lacks agility when introducing changes such as adding new data sources, services or applications. Thus a “pragmatic” 1:1 connectivity approach actually slows down the IIoT responsibles’ ability for business enablement where it is really needed to accelerate.

At this point, it is worth moving from the very detailed example of MQTT and OPC UA to a broader picture, because IIoT is a topic full of diversity and dynamics.

In contrast to the 1:1 connectivity approach, the Connectware IIoT Edge Platform enables (m)any-to-(m)any connectivity between pretty much any OT and IT data endpoints. From a strategic point of view, the Connectware, acting as a “technology-neutral layer”, provides limitless compatibility in the IIoT ecosystem while maintaining convenient independence from powerful providers and platforms. It provides a unified, standardised and systematic environment that is made to fit expert users’ preferences. On this basis, IIoT responsibles can leverage key tactical benefits such as data governance, workflow automation and advanced security. You can read more about these aspects and dive into more operational capabilities in related articles.

If you have any further questions or require some additional information on the topic, please do not hesitate to contact our experts directly.


Diving deeper

1) How to connect to an OPC UA server

2) How to set up the integrated Connectware OPC UA server

3) How to connect an MQTT client to publish and subscribe data

4) Connectware & Azure IoT Hub Integration

5) Connectware & AWS IoT (Greengrass) Integration

Introduction

Understanding and leveraging the possibilities of Industry 4.0 has become critical to defending hard-fought market positions and proving new leadership in fast evolving manufacturing markets. Currently, six out of ten industrial enterprises in Germany already apply industry 4.0 practices and this tendency is steadily increasing (Bitkom e.V., 2020). For instance, eighty percent of German SMEs are planning or budgeting upcoming IoT projects (PAC Deutschland, 2019). But to enable agile and powerful IIoT-driven business, IT-departments must choose tools that support them as best possible. Most solutions in the market are based on two very different approaches: A No-Code / Low-Code Platform (NC/LC) or Infrastructure as Code (IaC). Each has their own characteristics and lead to very different operational realities for the people responsible for IIoT architectures. Here’s what you need to know to choose what’s best for you.

What it means

Before delivering a precise definition of IaC and NC/LC, it is important to take a step back and examine the basic term infrastructure in the IIoT context.
Let’s look at a traditional manufacturing enterprise with two production machines A and B. Each of them has a controller, which is connected to the companies’ networks C and communicates via different protocols D and E. The input data is then used by the different applications F and G to follow specific purposes, e.g. predictive maintenance. This most basic infrastructure already has seven elements. But in reality examples can easily be far more complex and may need to support growing or changing dynamics.

In a NC/LC based IIoT Edge Hub, all components A-G are visually represented and interrelated per drag-and-drop system on a solution design canvas. Each element is typically described via entry fields, check boxes and radio buttons in dedicated configuration windows. Immersing yourself in the code or into seemingly complex configuration files is not required. At the same time, this user convenience limits the deployment to those systems that fit into a graphical representation.

In contrast, the Infrastructure as Code (IaC) approach describes an entire infrastructure, needed for an IIoT use-case, in only one structured text file – often called the configuration or commissioning file. This file lists all of its components, called resources, and defines their specifications and interrelations in a standardized way. The commissioning file thus avoids time-consuming maneuvering of separate configurations or even scripts for each and all the different elements needed in a use-case. Everything is in one place, structured and standardized.

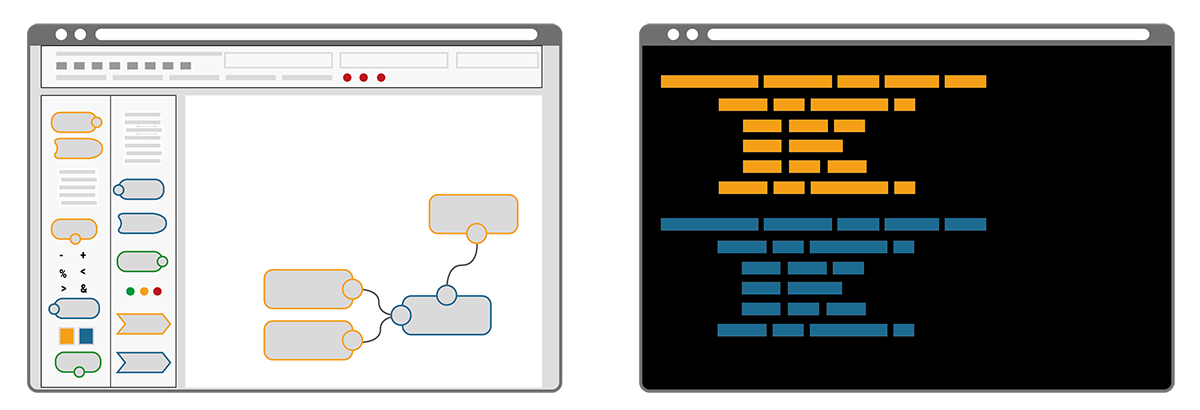

Simple infrastructure in comparison
No-Code / Low-Code Platform (NC/LC, left-hand side) in comparison to Infrastructure as Code (IaC, right-hand side)

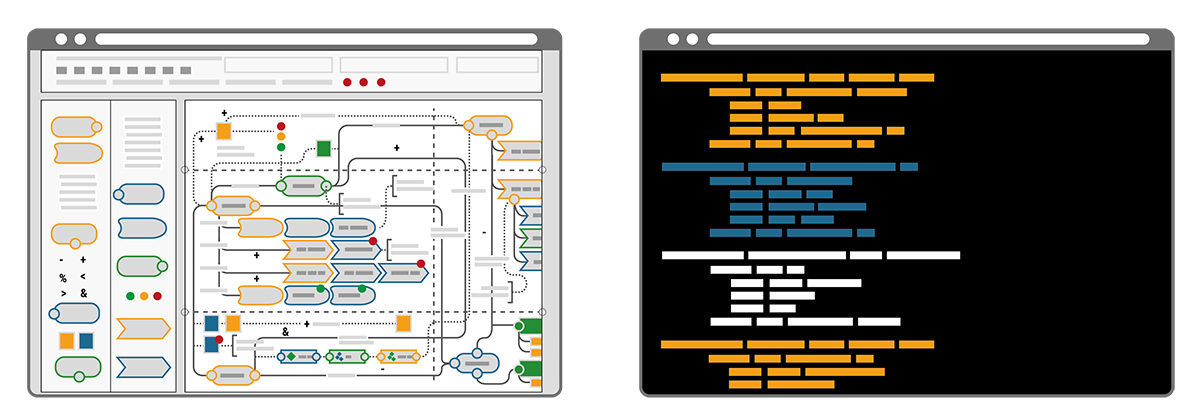

Complex infrastructure in comparison
A complex No-Code / Low-Code Platform (NC/LC, left-hand side) in comparison to Infrastructure as Code (IaC, right-hand side)

A key difference of the two approaches becomes clear by illustrating the workflow that’s required when changes are needed. Imagine a bike that consists of a number of components, each defined by its name, size, colour, function, etc. Now imagine the colour of the bike needed to be blue instead of yellow. In the IaC approach the single text-based commissioning file can be searched for “colour” and the assigned codes can be auto-replaced in a single step. Alternatively “colour” could be a resource of its own and called upon by all components, thus allowing pre-defined auto-matching colour schemes. Minimal effort, minimal risk of errors and maximum speed to deliver. In contrast, the NC/LC approach would require the administrator to click through every single bike component, select the new colour from a dropdown menu or with a radio button and confirm this selection. Obviously this route takes much longer, is prone to errors and it requires extra knowledge when colour schemes are desired.

stepwise adaption of manufacturing settings
A comparison of working steps: Changing the colour of a bicycle frame with a NC/LC platform (top) versus Infrastructure as Code (bottom).

Decision criteria

NC/LC appears easier approachable because of its visuality. However, the problem remains in the detail of the configurations that still need to be made.
IaC on the other hand appears very technical as it resembles expert thinking in its structured approach.
Here’s how to make sense of the decision, depending on your context:

Here and there deployment or broader transformation?

When facing a single deployment, NC/LC impresses with its simple and quick handling. The drag-and-drop platform enables a fast implementation without prior knowledge and delivers quick outcomes.
But the ease of integration plays a major role in the IIoT deployment: Unlike other approaches, IaC smoothly integrates into any existing system and pipeline. There is no need to change the current infrastructure, which saves plenty of time and trouble. This also includes the potential of using different services applied on the same infrastructure – non-competitive and simultaneously. IaC also lowers the risk of flaws in processes of adaptation, as it naturally brings versioning. During the development, starting from the very first POC to the finalized environment, all steps stay traceable. Furthermore, staging deployment is easily applicable with IaC to test whether e.g. the system works properly before its final release. Additionally, a safe setup deployment can be integrated.

What’s my outlook – a limited or scaling scenario?

A crucial advantage of IaC is its limitless scalability. IaC easily adapts to every expansion, enhancement and further development. Practically, new machines or whole heterogenous shop floors are quickly connected. Also, multiple IaC can be deployed and cross-connected, if a diverse handling internally or even externally across factories is required. What makes IaC even more beneficial and suitable for scaling is its capability to design the data output individually. The commissioning files can include instructions on the frequency, format, content and critical threshold values of the data output.
In a limited use-case, NC/LC convinces with a time-saving deployment. It’s highly specialized for the specific use case, which makes it straightforward and user-friendly.

What do I expect – Static setup or continuous improvement and automation?

Thanks to its standardized deployment, IaC reduces this risk of errors and false configurations which accompanies continuous improvements. More importantly, IaC enables full automation across multiple manufacturing processes, machines, locations and even different factory operators. Besides, it permits the implementation of specific parameters, if an individual adaptation is desired.
After all, if the need occurs to change the NC/LC infrastructure to a code-based infrastructure, the conversion can become time-consuming: As users are dependent on the pre-programmed underlying code of the interface, the transition might be intransparent and produce some unexpected results. Additionally, the predefined components rule out individual specifications. This choice hampers a factories’ potential for adjustment to market changes and scalability.

Who’s working with it – anyone and their grandma or experts?

Besides the obvious aspect of user-friendliness, the security of an IIoT environment is crucial. IaC scores with a highly secure infrastructure. By using commissioning files, a closed system is created, being naturally intangible for external access. If the latter is desired, pre-defined external access can be permitted explicitly within the code. This way, the privacy protection is ensured and the access stays limited to only intended requests.
NC/LC in contrast, stands out with its user-friendliness. Reduced to a graphical interface and as little code as possible, even non-experts can set the environment up or apply changes immediately if necessary.

Conclusion

What becomes apparent is that the IaC approach is more problem generic. It can be generalized easily to other environments and conditions. NC/LC in contrast, is more problem-specific and suitable for only one precise environment.
To accelerate your decision-making and summarize the main features of both approaches, you can rely on the following rule of thumb:



What’s next

For more than five years, Cybus has been relying on IaC to deploy an IIoT manufacturing environment. While realizing manifold solutions with diverse customers, our IaC solutions always contribute significantly to scalable, sustainable and efficient IIoT manufacturing environments.

If you have any questions or if you would like to get deeper into the topic of IaC, our experts are happy to provide you with further insights. You are welcome to contact us directly.

Reference

Bitkom e.V.: Paulsen, N., & Eylers, K. (2020, May 19). Industrie 4.0 – so digital sind Deutschlands Fabriken. Retrieved July 20, 2020, from https://www.bitkom.org/Presse/Presseinformation/Industrie-40-so-digital-sind-Deutschlands-Fabriken

PAC Deutschland: Vogt, Arnold (2020, April). Das Internet der Dinge im deutschen Mittelstand. Retrieved July 21, 2020, from https://iot.telekom.com/resource/blob/data/183656/e16e24c291368e1f6a75362f7f9d0fc0/das-internet-der-dinge-im-deutschen-mittelstand.pdf

Prerequisites

Conventions

From now on I’ll reference the protocol we are building as newprotocol. You should pick your own name.

Introduction

This article will guide you on how to build your own protocol connector using the VRPC generic protocol.
You will learn how to build an agent for your protocol and how to integrate it on a Connectware Service Commissioning File.
You will also learn how to package your project as a docker image for easy distribution.
For better understanding of all the topics discussed here you should take a look at generic VRPC protocol.

What is the VRPC generic protocol?

With the help of the VRPC project we can extend the capabilities of the Connectware by allowing users to implement their own protocols.
We do this by using a special protocol (genericVrpc) that will wrap around your own implementation.
All the communication between the Connectware and the new protocol will be managed by VRPC.

Creating the project

Before we begin laying out the code for our protocol, we need to create a repository for it.

So, go ahead and run the following commands:

mkdir newprotocol-connector
cd newprotocol-connector
git init .
echo node_modules > .gitignore

Alright, almost done!. Now, we need to create a npm project so we can manage our project dependencies.

We can do this with the following command:

npm init -y

Installing libraries

Now we have our project base ready, lets install some basic libraries that we need to make it all work:

npm install config  # Node module to handle project configurations
npm install js-yaml # Allow loading yaml based config files
npm install vrpc    # The VRPC library

Additionally, you should install all the libraries you need to make your project work.

Configurations

Now, it is time to add the configuration files to our project.

So, go ahead and create the config directory in the project root by running:

mkdir config

Then create the following files inside:

default.yaml:

mqtt:
  scheme: mqtt
  host: broker
  port: 1883
vrpc:
  domain: 'newprotocol.vrpc'
  agent: 'newprotocol.connector'

NOTE

You should configure vrpc.domain and vrpc.agent properties according to your protocol.

custom-environment-variables.yaml:

mqtt:
  scheme: MQTT_SCHEME
  host: MQTT_HOST
  port: MQTT_PORT
  username: MQTT_USER
  password: MQTT_PASSWORD
vrpc:
  domain: VRPC_DOMAIN
  agent: VRPC_AGENT

Cool, configuration is done!

Now you can configure your project with additional variables you may need.

Let’s add some code!

We can now proceed to add a class that will implement our protocol.

First, create the src directory:

mkdir src

Then, add the following class template inside:

NewProtocol.js:

const { EventEmitter } = require('events')

class NewProtocol extends EventEmitter {
  constructor (params) {
    super()

    const defaultOptions = {
        // Your protocol default options.
    }

    // Merge default options with the ones specified on the commissioning file.
    this._options = Object.assign(defaultOptions, params.options)
  }

  async connect () {
    // Connect to your protocol here

    // Emit 'connected' when you are done
    this.emit('connected')
  }

  async disconnect () {
    // Disconnect from your protocol here

    // Emit 'disconnected' when you are done
    this.emit('disconnected')
  }

  async subscribe (address, id) {
    // Subscribe to your protocol here

    // Emit an event when there is data on this subscription
    this.emit(id, { value: 'some data' })
  }

  async unsubscribe (id) {
    // Unsubscribe to your protocol here
  }

  async read (address) {
    // Implement the read operation of your protocol here

    // then return it
    return 'read data'
  }

  async write (address, data) {
    // Implement the write operation of your protocol here
  }
}

// Export the class
module.exports = NewProtocol

Now, you need to implement all the protocol main functions (connect, disconnect, write, read, subscribe, unsubscribe)

Once we have our implementation ready, we need to register the class on a VRPC agent and serve it to the Connectware.

To do that, create the following file in the project root, with this content:

index.js:

'use strict'
const { VrpcAdapter, VrpcAgent } = require('vrpc')
const config = require('config')

// Register our new protocol class
VrpcAdapter.register(require('./src/NewProtocol'))

// Create a VRPC agent
const agent = new VrpcAgent({
  domain: config.get('vrpc.domain'),
  agent: config.get('vrpc.agent'),
  username: config.get('mqtt.username'),
  password: config.get('mqtt.password'),
  broker: `${config.get('mqtt.scheme')}://${config.get(
    'mqtt.host')}:${config.get('mqtt.port')}`
})

// Serve all registered classes back to the Connectware
agent.serve()

Dockerfile

To be able to run this project we need to package it on a docker image.
So, lets create a Dockerfile in the project root with the following content:

FROM node:12.18.2-alpine@sha256:b48d5259d91e549e4941d5170870619d2e9c27de648e6230625752481232a005

WORKDIR /app
COPY . /app

RUN npm install

ENTRYPOINT ["node", "."]

Building the image

To build the image run the following command in the project root:

docker build -t newprotocol-connector:0.1 .

Running the image

To run the image run the following command in the project root:

docker run -v /tmp/data:/data -d --name newprotocol-connector --rm -e MQTT_USER=admin -e MQTT_PASSWORD=admin newprotocol-connector:0.1

Working example

You can find a working connector for the Atlas Copco OpenProtocol here.

Prerequisites

As you are reading this sentence, you seem to have a general interest in the topic of industry digitization. That’s all you need, lean back and simply enjoy this article.

Introduction

So, we want to compare two very abstract things, a „classical“ Supervisory Control and Data Acquisition (SCADA) system against a „modern“ Industrial Internet of Things (IIoT) system. Let’s structure the comparison by looking at the problems that each system is going to solve or in other words, the benefits that each system is intended to provide to the user(s).

To further structure the comparison we define the locations where the two systems are acting in:

1) Things

2) Gateway

3) Cloud

4) Mobile

The Things layer describes the location of the physical equipment the systems are going to interact with. Typically, Things on that level are not directly connected to the Internet, but typically to one or more local networks.

The Gateway describes the location where information from the Things layer is aggregated. It furthermore is the location that defines the transition between the local network(s) and the public Internet.

The Cloud layer is located in the Internet and describes a set of servers that are dealing with the data as provided by one or more Gateways.

The Mobile layer finally describes the location of a human end-user. Irrespective of the geographical location, the user will interact with the data as provided by the Cloud services always having direct access to the Internet.

You already notice that the topic is large and complex. That is why the comparison will be sliced into digestible pieces. Today’s article will start with a focus on Things and how they are represented.

Representing Things

At the lowest level we want to interact with Things, which can be – as the name suggests – quite anything. Fortunately, we are talking about IIoT and SCADA so let’s immediately reduce the scope and look at Things from an industrial perspective.

In an industrial context (especially in SCADA lingo) things are often called Devices, a general name for motors, pumps, grippers, RFID readers, cameras, sensors and so on. In other words, a Device can reflect any piece of (digitized) hardware of any complexity.

For structuring the further discussion let’s divide Devices into two kinds: actors and sensors, with actors being Devices that are „doing something“, and sensors being Devices that are „reading something“.

Having this defined, one could believe that the entire shop-floor (a company’s total set of Devices) can be categorized this way. However, this quickly turns out to be tricky as – depending on the perspective – Devices are complex entities most often including several sensors and actors at the same time.

In its extreme, already a valve is a complex Device composed of typically one actor (valve motion) and two sensors (sensing open and closed position).

View on things

The trickiest thing for any software system is to provide interactions with Devices on any abstraction level and perspective. Depending on the user, the definition of what a Device is turns out to be completely different: the PLC programmer may see a single analog output as a Device whereas the control room operator may perceive an entire plant-subsystem as a Device (to formulate an extreme case).

Problem to solve

Provide a system that can interact with actors and sensors at the most atomic level but at the same time provide arbitrary logical layers on top of the underlying physical realities. Those logical abstractions must fit the different end-user’s requirements regarding read-out and control and typically vary and overlap in abstraction-level (vertically) as well as in composition-level (horizontally).

Technical solution

We will call the logical representation of a Device a Digital Twin. Digital Twins then form vertices in a tree, with the root vertex expressing the most abstract view of a Device. Lower levels of abstractions are reached by traversing the tree downwards in direction of the leaves each vertex representing a Sub-Device its parent is composed of. The leaves finally represent the lowest level of abstraction and may e.g. reflect a single physical analog input. In SCADA systems such most atomic entities are called Process Variables (PVs). The number of children per parent indicates the horizontal complexity of the respective parent. Finally the shop-floor is represented as a forest of the above described trees indicating a disjoint union of all entities.

Side Effect

In such a solution writing to or reading from a Digital Twin may result in an interaction with a physical or logical property, as Digital Twins may act on each other (as described above) or directly on physical entities.

This poses an (graph-)algorithmic challenge of correctly identifying all Digital Twins affected by a failure or complete loss of connection to a physical property and for the entire access control layer that must give different users different permissions on the available properties.

SCADA vs IIoT

SCADA systems have a very strong focus on creating logical representations of Devices at a very early stage. A full set of a logical Device hierarchy is established and visualized to the user already on-premise. Most of the data hence never hit the cloud (i.e. the Internet) but is used to immediately feedback into the system or to the operator. Although distributed, SCADA systems aggregate data within (private) local networks and hence have less focus on Internet security or web-standards for communication.

IIoT systems, in contrast, try to make no assumptions on where the representation from raw information to logical Devices is happening. Furthermore, they do not assume that data is used solely for observing and controlling a plant but for completely – yet unknown – use cases, such as integration into other administrative layers of an enterprise. Consequently, communication is prepared to follow most recent standards of security and transport protocols from the beginning on and much effort is undertaken to have a very flexible, albeit semantically clear description of the raw Device data to be consumed by any other higher abstraction layer.

Final words

Hopefully, you could already grasp some fundamental differences between the two systems. In the following articles we will sharpen these differences and have a look at further locations of activity (Gateway, Cloud and Mobile).

In a final article we will demonstrate how the Cybus Connectware implements all the discussed requirements for a modern IIoT system and how you can use it for your special use-case.

Prerequisites

Introduction

This article will be covering Docker including the following topics:

What is Docker

Maybe this sounds familiar. You have been assigned a task in which you had to deploy a complex software onto an existing infrastructure. As you know there are a lot of variables to this which might be out of your control. The operating system, pre existing dependencies, probably even interfering software. Even if the environment is perfect at the moment of the deployment what happens after you are done? Living systems constantly change. New software is introduced while old and outdated software and libraries are getting removed. Parts of the system that you rely on today might be gone tomorrow.

This is where virtualization comes in. It used to be best practice to create isolated virtual computer systems, so called virtual machines (VMs), which simulate independent systems with their own operating systems and libraries. Using these VMs you can run any kind of software in a separated and clean environment without the fear of collisions with other parts of the system. You can emulate the exact hardware you need, install the OS you want and include all the software you are dependent on at just the right version. It offers great flexibility.

It also means that these VMs are very demanding on your host system. The hardware has to be strong enough to create virtual hardware for your virtual systems. They also have to be created and installed for every virtual system that you are using. Even though they might run on the same host sharing resources between them is just as inconvenient as with real machines.

Introducing the container approach and one of their main competitors, Docker. Simply put, Docker enables you to isolate your software into containers. The only thing you need is a running instance of Docker on your host. Even better: All the necessary resources like OS and libraries cannot only be deployed with your software, they can even be shared between individual instances of your containers running on the same system! This is a big improvement above regular VMs. Sounds too good to be true?

Well, even though Docker comes with everything you need, it is still up to you to assure consistency and reproducibility of your own containers. In the following article I will slowly introduce you to Docker and give you the basic knowledge necessary to be part of the containerized world.

Getting Docker

Before we can start creating containers we first have to get Docker running on our system. Docker is available for Linux, Mac and just recently for Windows 10. Just choose the version that is right for you and come back right here once you are done:

Please notice that the official documentation contains instructions for multiple Linux distributions, so just choose the one that fits your needs.

Even though the workflow is very similar for all platforms, the rest of the article will assume that you are running an Unix environment. Commands and scripts can vary when you are running on Windows 10.

Your first Docker container

Got Docker installed and ready to go? Great! Let’s get our hands on creating the first container. Most tutorials will start off by running the tried and true „Hello World“ example but chances are you already did it when you were installing Docker.

So lets start something from scratch! Open your shell and type the following:

  docker run -p 8080:80 httpd

If everything went well you will get a response like this:

  Unable to find image 'httpd:latest' locally
  latest: Pulling from library/httpd
  f17d81b4b692: Pull complete
  06fe09255c64: Pull complete
  0baf8127507d: Pull complete
  07b9730387a3: Pull complete
  6dbdee9d6fa5: Pull complete
  Digest: sha256:90b34f4370518872de4ac1af696a90d982fe99b0f30c9be994964f49a6e2f421
  Status: Downloaded newer image for httpd:latest
  AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 172.17.0.2. Set the 'ServerName' directive globally to suppress this message
  AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 172.17.0.2. Set the 'ServerName' directive globally to suppress this message
  [Mon Nov 12 09:15:49.813100 2018] [mpm_event:notice] [pid 1:tid 140244084212928] AH00489: Apache/2.4.37 (Unix) configured -- resuming normal operations
  [Mon Nov 12 09:15:49.813536 2018] [core:notice] [pid 1:tid 140244084212928] AH00094: Command line: 'httpd -D FOREGROUND'

Now there is a lot to go through but first open a browser and head over to localhost:8080.

it works

Yeah, we just did that!

What we just achieved is we set up and started a simple http server locally on port 8080 within less than 25 typed characters. But what did we write exactly? Let’s analyze the command a bit closer:


IMAGES

Okay, so what is an image and where does it come from? Quick answer: An image is a template that contains instructions for creating a container. Images can be hosted locally or online. Our httpd image was hosted on the Docker Hub. We will talk more about the official docker registry in the Exploring the Docker Hub part of this lesson.


HELP

The Docker CLI contains a thorough manual. So whenever you want more details about a certain command just add --help behind the command and you will get the man page regarding the command.


Great! Now that we understand what we did we can take a look at the output.

  Unable to find image 'httpd:latest' locally
  latest: Pulling from library/httpd
  f17d81b4b692: Pull complete
  06fe09255c64: Pull complete
  0baf8127507d: Pull complete
  07b9730387a3: Pull complete
  6dbdee9d6fa5: Pull complete
  Digest: sha256:90b34f4370518872de4ac1af696a90d982fe99b0f30c9be994964f49a6e2f421
  Status: Downloaded newer image for httpd:latest

The httpd image we used was not found locally so Docker automatically downloaded the image and all dependencies for us. It also provides us with a digest for our just created container. This string starting with sha256 can be very useful for us! Imagine that you create software that is based upon a certain image. By binding the image to this digest you make sure that you are always pulling and using the same version of the container and thus ensuring reproducibility and improving stability of your software.

While the rest of the output is internal output from our small webserver you might have noticed that the command prompt did not return to input once the container started. This is because we are currently running the container in forefront. All output that our container generates will be visible in our shell window while we are running it. You can try this by reloading the webpage of our webserver. Once the connection is reestablished the container should log something similar to this:

  172.17.0.1 - - [12/Nov/2018:09:17:12 +0000] "GET / HTTP/1.1" 304 -

You might have also noticed that the ip address is not the one from your local machine. This is because Docker creates containers in their own Docker network. Explaining Docker networks is out of scope for this tutorial so I will just redirect you to the official documentation about Docker networks for the time being.

For now, stop the container and return to the command prompt by pressing ctrl+c while the shell window is in focus.

Managing Docker containers

Detaching Docker containers

Now that we know how to run a container it is clear that having them run in an active window isn’t always practical. Let’s start the container again but this time we will add a few things to the command:

  docker run --name serverInBackground -d -p 8080:80 httpd

When you run the command you will notice two things: First the command will execute way faster then the first time. This is because the image that we are using was already downloaded the last time and is currently hosted locally on our machine. Second, there is no output anymore besides a strange string of characters. This string is the ID of our container. It can be used to refer to its running instance.

So what are those two new flags?


Sharing resources If you want to you can execute the above command with different names and ports as many times as you wish. While you can have multiple containers running httpd they will all be sharing the same image. No need to download or copy what already have on your host.


Listing Docker containers

So now that we started our container make sure that it is actually running. Last time we opened our browser and accessed the webpage hosted on the server. This time let’s take another approach. Type the following in the command prompt:

  docker ps

The output should look something like this:

  CONTAINER ID    IMAGE    COMMAND              CREATED             STATUS           PORTS                  NAMES
  018acb9dbbbd    httpd    "httpd-foreground"   11 minutes ago      Up 11 minutes    0.0.0.0:8080->80/tcp   serverInBackground

Inspecting Docker containers

Another important ability is to get low level information about the configuration of a certain container. You can get these information by typing:

  docker inspect serverInBackground

Notice that is doesn’t matter if you use the attached name or the container ID. Both will give you the same result.

The output of this command is huge and includes everything from information about the image itself to network configuration.


HINT
You can execute the same command using a image id to inspect the template configuration of the image.


To learn more about inspecting docker containers please refer to the official documentation .

Crawling inside the Docker container

We can even go in deeper and interact with the internals of the container. Say we want to try changes to our running container without having to shut it down and restart it every time. So how do we approach this?

Like a lot of Docker images, httpd is based upon a Linux image itself. In this case httpd is running a slim version of Debian in the background. So being a Linux system we can access a shell inside the container. This gives us a working environment that we are already familiar with. Let’s jump in and try it:

  docker exec -it -u 0 serverInBackground bash

There are a few new things to talk about:

When you execute the command you will see a new shell inside the container. Try moving around in the container and use commands you are familiar with. You will notice that you are missing a lot of capabilities. This has to be expected on a distribution that is supposed to be as small as possible. Thankfully httpd includes the apt packaging manager so you can expend the capabilities. When you are done, You can exit the shell again by typing exit.

Getting log output

Sometimes something inside your containers just won’t work and you can’t find out why by blindly stepping through your configuration. This is where the Docker logs come in.

To see logs from a running container just type this:

  docker logs serverInBackground -f --tail 10

Once again there are is a new command and a few new flags for us:

You can quit the log session by pressing ctrl+c while the shell is in focus.

Stopping a detached Docker container

If you have to shutdown a running container the most graceful way is to stop it. The command is pretty straight forward:

  docker stop serverInBackground

This will try to shutdown the container and kill it, if it is not responding. Keep in mind that the stopped container is not gone! You can restart the container by simply writing

  docker start serverInBackground

Killing the Docker container – a last resort

Sometimes if something went really wrong, your only choice is to take down a container as quickly as possible.

  docker kill serverInBackground

NOTE

Even though this will get the job done, killing a container might lead to unwanted side effects due to not shutting it down correctly.


Removing a container

As we already mentioned, stopping a container does not remove it. To show that a stopped container is still managed in the background just type the following:

  docker container ls -a
CONTAINER ID    IMAGE    COMMAND              CREATED              STATUS                      PORTS    NAMES
ee437314785f    httpd    "httpd-foreground"   About a minute ago   Exited (0) 8 seconds ago             serverInBackground

As you can see even though we stopped the container it is still there. To get rid of it we have to remove it.

Just run this command:

  docker rm serverInBackground

When you now run docker container ls -a again you will notice that the container tagged serverInBackground is gone. Keep in mind that this only removes the stopped container! The image you used to create the container will still be there.

Removing the image

The time might come in which you don’t need a certain image anymore. You can remove a image the same way you remove a container. To get the id of the image you want to remove you can run the docker image ls command from earlier. Once you know what you want to remove type the following command:

  docker rmi <IMAGE-ID>

This will the image if it is not needed anymore by running docker instances.

Exploring the Docker Hub

Docker Hub

You might have asked yourself where this mysterious httpd image comes from or how I know which Linux distro it is based on. Every image you use has to be hosted somewhere. This can either be done locally on your machine or a dedicated repository in your company or even online through a hosting service. The official Docker Hub is one of those repositories. Head over to the Docker Hub and take a moment to browse the site. When creating your own containers it is always a good idea not to reinvent the wheel. There are thousands of images out there spreading from small web servers (like our httpd image) to full fledged operating systems ready at your disposal. Just type a keyword in the search field at the top of the page (web server for example) and take a stroll through the offers available or just check out the httpd repo. Most of these images hosted here offer help regarding dependencies or installation. Some of them even include information about something called a Dockerfile..

Writing a Dockerfile

While creating containers from the command line is pretty straight forward, there are certain situations in which you don’t want to configure these containers by hand. Luckily enough we have another option, the Dockerfile. If you have already taken a look at the example files provided for httpd you might have an idea about what you can expect.

So go ahead and create a new file called ‚Dockerfile‘ (mind the capitalization). We will add some content to this file:

FROM httpd:2.4
COPY ./html/ /usr/local/apache2/htdocs/

This is a very barebone Dockerfile. It basically just says two things:

So what the Dockerfile currently says is: Use the image known as httpd in version 2.4, copy all the files from the sub folder ‚./html‘ to ‚/usr/local/apache2/htdocs/‘ and create a new image containing all my changes.

For extra credit: Remember the digest from before? You can use the digest to pin our new image to the httpd image version we used in the beginning. The syntax for this is:

FROM <IMAGENAME>@<DIGEST-STRING>

Now, it would be nice to have something that can actually be copied over. Create a folder called html and create a small index.html file in there. If you don’t feel like writing one on your own just use mine:

<!DOCTYPE html>
<html>
  <body>
    <h1>That's one small step for the web,</h1>
    <p>one giant leap for containerization.</p>
  </body>
</html>

Open a shell window in the exact location where you placed your Dockerfile and html folder and type the following command:

  docker build . -t my-new-server-image

The shell output should look like this:

  Sending build context to Docker daemon  3.584kB
  Step 1/2 : FROM httpd:2.4
  ---> 55a118e2a010
  Step 2/2 : COPY ./html/ /usr/local/apache2/htdocs/
  ---> Using cache
  ---> 867a4993670a
  Successfully built 867a4993670a
  Successfully tagged my-new-server-image:latest

You can make sure that your newly created image is hosted on your local machine by running

  docker image ls

This will show you all images hosted on your machine.

We can finally run our modified httpd image by simply typing:

  docker run --name myModifiedServer -d -p 8080:80 my-new-server-image

This command should look familiar by now. The only thing we changed is that we are not using the httpd image anymore. Instead we are referring to our newly created ‚my-new-server-image‘.

Let’s see if everything is working by opening the Server in a browser.

Modified httpd

I think it is time for us to pat ourselves on the back. We did good today!

Summary

By the time you reached these lines you should be able to create, monitor and remove containers from preexisting images as well as create new ones using Dockerfiles. You should also have a basic understanding of how to inspect and debug running containers.

Where to go from here

As was to be expected from a basic lesson there is still a lot to cover. A good place to start is the Docker documentation itself. Another topic we didn’t even touch is Docker Compose, which provides an elegant way to orchestrate groups of containers.


Learn more

Prerequisites

This lesson assumes basic knowledge of networking concepts.

Introduction

This article will be covering Wireshark including the following topics:

What is Wireshark

Wireshark is a network packet analyzer. It is used to capture data from a network and display its content. Being an analyzer, Wireshark can only be used to measure data but not manipulate or send it. Wireshark is open source and free which makes it one of the most popular network analyzer available.

Getting Wireshark

Wireshark is available for Linux, Windows and Mac through the official website. For more information about building Wireshark from source please take a look at the official developers guide.

Running Wireshark

Depending on your operating system and user settings you might have to run Wireshark with admin privileges to capture packets on your network. If your welcome screen is blank and does not show any network interfaces it usually means that your user account is lacking the necessary access rights.

Your first capture

Welcome Screen

Once Wireshark is started you will be greeted by a welcome screen like the one shown above listing all available network connections. A small traffic preview is shown next to the interface names so it is easy to distinguish between interfaces with or without direct network access. To finally start capturing data on your network you first have to select one or more of these network interfaces by simply clicking on them. To select multiple interfaces at once just hold down ctrl and select all interfaces you want to listen on. Once selected you can start recording packets by clicking the start icon in the top left of the user interface.

Start Wireshark

The window will change to the main capturing view and immediately display everything passing the network on your selected capturing device as see below.

Unfiltered Network Traffic

Stop the current capturing process by clicking on the red stop button.

Stop Button

Filtering Traffic

Even the smallest network will produce a lot of static data that can result in very large capture files. To avoid slowdowns you should not capture unfiltered network traffic. To do so open the capture configuration window by clicking on the cogwheel icon.

Configure Wireshark

This will open the capture configuration menu. This menu provides options similar to those you already saw on the welcome screen. You can select network devices, set capture filters and configure the capturing process. This time we want to apply a filter before we start capturing data. Select the network interface of your choice and just type ‚tcp‘ into the capture filter dialog box on the bottom of the configuration window like below.

Configuration Window Wireshark

Now when you now start capturing again only packets applicable to the tcp protocol filter are captured and displayed.

More on Filters

Wireshark provides a powerful filter language which not only allows you to narrow down the packets you want to capture but also to sort, follow or even compare their content. This section will only scratch the surface of what is possible with Wireshark so for the time being please consult the Wireshark Wiki for further information about creating filters.

It is a common mistake to believe that capture filters and display filters work the same way in Wireshark. While capture filters change the outcome of the capturing process, display filters can be applied to already running capturing processes to narrow down what to display. Furthermore they use different filter language syntax.

Capture filter example

To narrow down our captured data to only include packets from a certain ip range:

src net 192.168.2.0/24

Display filter example

The same can be done to filter the already captured data in the main window:

ip.addr == 192.168.2.0/24

Combining filters

To find exactly what you are looking for on your network you can concatenate different filters. If you want to capture packets from a certain host and port you can simply add both filters together:

host 192.168.2.100 and port 20

You can specify data that you want to explicitly exclude:

host www.google.com and not (port 20 or port 80)

This would only capture data from a certain host which is not transferred on port 20 or 80.

Collecting data

A standard example to see actual network traffic is to ping a host and collect the data.

Just run a capture and set the capture filter to the host you are going to ping (www.google.com would be a popular choice).

host www.google.com

Go ahead and start the capturing process. Without any connections to your host open the main window should stay empty for now.

Next open a terminal window and ping the host you specified in the capture filter. Within a few moments you should see the first packets.

Once you have captured some packets press the stop button.

Analyzing at the data

After collecting data the user interface contains three main parts. Those being the packet list pane, the packet details pane and packet bytes pane.

On top is the packet list pane. This view displays a summary of all the captured packets. You can choose any of the packets by just selecting and the other two views will adapt to the selection. Go ahead and select any of the packets and notice how the other two views change.

Packet List Wireshark

The one in the middle is the packet details pane. It shows more details about the packets you select in the packet list pane.

Packet Details Wireshark

On the bottom the packet bytes pane displays the actual data transferred in the packets.

Packet Bytes Wireshark

Using these sections you can view the traffic and break it down for analysis.

Summary

Wireshark is a powerful network packet analyzer. It offers everything you need to capture, filter and view your local network traffic. After reading through this article you should have all the basic knowledge necessary to create and filter simple captures.


Learn more

Prerequisites

This lesson assumes basic knowledge of networking concepts.

Introduction

This article will be covering the MQTT Protocol including:

What is MQTT?

MQTT or Message Queuing Telemetry Transport is a lightweight publish (send a message) subscribe (wait for a message) protocol. It was designed to be used on networks that have low-bandwidth, high-latency and could be unreliable. Since it was designed with these constraints in mind, it’s perfect to send data between devices and is very common in the IoT world.

Where does MQTT come from?

MQTT was invented by Dr Andy Stanford-Clark of IBM, and Arlen Nipper of Arcom (now Eurotech), in 1999. They invited the protocol while working on SCADA system for an oil and gas company that needed to deliver real time data. For 10 years IBM used the protocol internally. Then in 2010 they released MQTT 3.1 as free version for public use. Since then many companies have used the protocol including Cybus.

If you’re interested in learning more you can click here to read the transcript of a IBM podcast where the creators discuss the history and use of MQTT.

Client and Broker in MQTT

Client

A client is defined as any device from a micro controller to a server as long as it runs a MQTT client library and connects to a MQTT broker over a network. You will find that many small devices that need to connect over the network use MQTT and you will find that there are a huge number of programming languages that support MQTT as well.
Find a list of libraries here.

Broker

The broker is defined as the connector of all clients that publish and receive data. It manages active connections, filtering of messages, receiving messages and then routing messages to the correct clients. Optionally it can also handle the authentication and authorization of clients.
Find a list of brokers here.

For information how they work together continue on to the next section.

MQTT Protocol Concepts

MQTT uses the publish (send a message) subscribe (wait for a message) pattern. This is an alternative approach to how a normal client (asks for data) server (send back data) pattern works. In the client server pattern a client will connect directly to a component for requesting data and then immediately receive a response back. In the publish subscribe pattern the connection between the components is handled by a third party component called a broker.

All messages go through the broker and it handles dispatching the correct message to correct receivers. It does that through the use of a topic. A topic is a simple string that can have hierarchical levels separated by ‚/‘.

Examples Topics:

The MQTT client can listen for a message by subscribing on a specific topic. It will then receive data when a MQTT client publishes a message on that topic.

Example

Client A:                                 Broker
subscribe /house/toaster/temp  ---------->  |
                                            |
                                            |                       Toaster Device:
                                            | <-------- publish /house/toaster/temp
                                            |
                                            |
Client A   < ------ Receive Message ------  |

This publish subscribe pattern offers a couple of advantages:

Topics in MQTT

Topics are the way that data is organized in MQTT. They are structured in a hierarchy manner using the ‚/‘ as a separator. It’s very similar to how folders and files are structured in a file system. A few things to remember about topics are that they are case sensitive, must use UTF-8 and and have to have at least 1 character.

Example of basic topics

Multiple Subscriptions

A client can also subscribe to multiple topics at once using wildcards. The 2 wildcards in MQTT are:

The level being the level of the topic hierarchy tree that you want to subscribe to.

Example multi level

Subscribe to house/#

Example single level

Subscribe to house/+/light

NOT

Publishing MQTT topics

An MQTT client can only publish to an individual topic. Meaning you cannot use wildcards.

$SYS Topics

The only topics you will find in a broker after start is the $SYS topics. These topics are usually reserved for publishing data about the broker such as the number of current client connections.

If you would like to read more specifics on the requirements of topics see the MQTT specification.

MQTT QOS

QOS (Quality of Service) is defined as the agreement between the broker and the client that deals with the guarantee that a message was delivered. MQTT defines 3 levels of QOS.

QOS 0 (At most once)

This is the fastest QOS level. When a message is sent across the network no reply from the broker is sent acknowledging that it received the message. The sending message is then deleted from the client sending queue so no repeat messages will be sent.

QOS 1 (At least once)

This level is the default mode of transfer. The message is guaranteed to be delivered at least once. It will continue to send the message with a DUP flag until an acknowledgment message is sent. This could result in duplicate messages being sent.

QOS 2 (Exactly once)

This is the slowest level as it requires 4 messages. The message is always delivered exactly once.

1) The sender sends the message and waits for a response from the broker.

2) The sender receives the response from the broker. If it doesn’t it sends the request again with a DUP flag.

3) The sender sends a message saying that it received the response and awaits acknowledgment.

4) The sender receives acknowledgment and deletes the message. If not it sends another message saying that it received the response with a DUP flag.

Retained messages in MQTT

Normally when a client publishes a message the broker will delete the message after routing to the correct subscribing clients. But what if a client subscribes to a topic after the message is sent? Then it will receive no data until another message is published. This could be desirable in certain situations but in other situations you may want the client to have the last published data. This is the purpose of the retain flag. If set to true when a message is sent the broker will cache the message and route it to any new subscribing clients. There is only 1 retained message per topic and if a new message is published it will replace the retained message.

Summary

MQTT is a lightweight publish subscribe protocol. It is defined with a broker client relationship and organizes its data in hierarchy structures called topics. When publishing messages you can specify a QOS level which will guarantee that a message is sent and specify a retain level for a message so a subscribing client can receive retained data after connecting.


Learn more

Ihr Browser unterstützt diese Webseite nicht.

Liebe Besucher:innen, Sie versuchen unsere Website über den Internet Explorer zu besuchen. Der Support für diesen Browser wurde durch den Hersteller eingestellt, weshalb er moderne Webseiten nicht mehr richtig darstellen kann.
Um die Inhalte dieser Website korrekt anzeigen zu können, benötigen Sie einen modernen Browser.

Unter folgenden Links finden Sie Browser, für die unsere Webseite optimiert wurde:

Google Chrome Browser herunterladen Mozilla Firefox Browser herunterladen

Sie können diese Website trotzdem anzeigen lassen, müssen aber mit erheblichen Einschränkungen rechnen.

Diese Website trotzdem anzeigen.
