by Philipp Geschke
Prerequisites
- Connectware is already installed and configured.
- Connectware license key.
- Helm V3 installed (Helm | Installing Helm).
kubectlinstalled (Install Tools).kubectlconfigured with the current context pointing to your target cluster (Configure Access to Multiple Clusters).- A Kubernetes namespace that will be used.
Adding the Helm chart repository
Add the Cybus connectware-helm repository to your local Helm installation to use the connectware-agent Helm chart to install Connectware agents in Kubernetes:
helm repo add cybus https://repository.cybus.io/repository/connectware-helm
To verify that the Helm chart is available you can execute a Helm search:
helm search repo connectware-agent
| NAME | CHART VERSION | APP VERSION DESCRIPTION |
|---|---|---|
| cybus/connectware-agent | 1.0.0 | 1.1.5 Cybus Connectware |
| standalone agents |
Creating your values.yaml file
As with all Helm charts, the connectware-agent chart is configured using a YAML file. This file can have any name, however we will refer to it as the values.yaml file.
Create this file to start configuring your agent installation by using your preferred editor:
vi values.yaml
Installing a single agent
To quickly install a single agent you only need to add your Connectware license key to your values.yaml file as the Helm value licenseKey:
licenseKey: <your-connectware-license-key>
You can now use this file to deploy your Connectware agent in a Kubernetes namespace of your choice:
helm upgrade -i connectware-agent cybus/connectware-agent -f values.yaml -n <namespace>
NAME: connectware-agent LAST DEPLOYED: Mon Mar 13 14:31:39 2023 NAMESPACE: connectware STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: Thank you for using the Cybus Connectware agent Helm chart! For additional information visit https://cybus.io/ Number of agents: 1 -------------------- - agent If any of these agents are new, please remember to visit Connectware's client registry to set up the connection to Connectware. ❗️Hint: If you have agents stuck in a status other than "Running", you need to delete the stuck pods before a pod with your new configuration will be created.
This will start a single Connectware agent named “agent”, which will connect to a Connectware installation deployed in the same namespace. Unlock the Client Registry in your Connectware admin UI to connect this agent. Refer to Client Registry — Cybus Documentation 1.1.5 documentation to learn how to use the Client Registry to connect agents.
You can repeat the same command to apply any changes to your values.yaml file configuration in the future.
Changing the target Connectware
If you are not deploying the agent in the same Kubernetes namespace, or even inside the same Kubernetes cluster, you need to specify the hostname under which Connectware is reachable for this agent.
In the default configuration, the following network ports on Connectware must be reachable for the agent:
- TCP/443
- TCP/1883
Specify the hostname of Connectware to which the agent connects to by setting the Helm value connectwareHost inside the protocolMapperAgentDefaults context of your values.yaml file. For Connectware deployments in a different Kubernetes namespace this is “connectware.<namespace>”.
Example:
licenseKey: <your-connectware-license-key> protocolMapperAgentDefaults: connectwareHost: connectware.cybus # adjust to actual hostname of Connectware
Connectware with separate control-plane-broker
To connect to a Connectware that uses the separate control-plane-broker, you need to set the Helm value controlPlaneBrokerEnabled to true inside the protocolMapperAgentDefaults section of your values.yaml file.
Example:
licenseKey: <your-connectware-license-key> protocolMapperAgentDefaults: connectwareHost: connectware.cybus # adjust to actual hostname of Connectware controlPlaneBrokerEnabled: true
❗️Note: This adds TCP/1884 to required network ports.
Installing multiple agents with a single Helm installation
You can use the agent chart to install multiple Connectware agents. Every agent you configure needs to be named using the Helm value name in a collection entry inside the context protocolMapperAgents. This way, the default name “agent” will be replaced by the name you give the agent.
Example:
licenseKey: <your-connectware-license-key> protocolMapperAgentDefaults: connectwareHost: connectware.cybus # adjust to actual hostname of Connectware protocolMapperAgents: - name: bender-robots - name: welder-robots
This will deploy two Connectware agents, named “bender-robots” and “welder-robots”, both of which will contact the Client Registry of Connectware inside the Kubernetes namespace “cybus”, as described in Client Registry — Cybus Documentation 1.1.5 documentation
Prerequisites
In this lesson, we will send data from the Connectware MQTT Broker to Azure IoT Hub.
It is required to have a working Connectware instance, and also a working Azure IoT Hub setup. We assume you are already familiar with Connectware and its service concept. If not, we recommend reading the articles Connectware Technical Overview and Service Basics for a quick introduction. Furthermore, this lesson requires basic understanding of MQTT and how to publish data on a MQTT topic. If you want to refresh your MQTT knowledge, we recommend reading the lessons MQTT Basics and How to connect an MQTT client to publish and subscribe data.
Introduction
This article is divided into two parts. In the first part, the general background of Azure IoT services and their differences is described. Feel free to skip this section if you are familiar with Azure IoT Hub, in particular with the difference between IoT Edge Runtime and IoT Device SDKs. In the second part, the recommended integration mechanisms between Connectware and Azure IoT Hub are explained in a hands-on approach.
Azure IoT Hub
Azure IoT Hub is a core component of the Azure IoT offerings. It is a fully managed service that enables reliable and secure bi-directional communication between IoT devices and an application back-end. Azure IoT Hub offers reliable device-to-cloud and cloud-to-device hyper-scale messaging, enables secure communications using per-device security credentials and access control, and includes device libraries for most popular programming languages and platforms.
There are two ways you can send data to Azure IoT Hub which are described below.
Azure IoT Hub Edge
Azure IoT Edge lets you offload parts of your IoT workload from your Azure cloud services to your devices. IoT Edge can reduce latency in your solution, reduce the amount of data your devices exchange with the cloud, and enable off-line scenarios. You can manage IoT Edge devices from IoT Central and some solution accelerators.
Azure IoT Edge is made up of three components:
- Edge modules: These are containers which are deployed on the edge devices and run Azure and other third-party services. You can build your own modules to send telemetry to the IoT Hub.
- Edge runtime: It runs on each IoT Edge device and manages the modules deployed to each device.
- Web interface: A cloud-based interface is used to remotely monitor and manage IoT Edge devices.
Azure IoT Hub Device SDKs
IoT Hub Device SDKs enable you to build apps that run on your IoT devices. These apps send telemetry to your IoT Hub, and optionally receive messages, job, method, or twin updates from your IoT Hub. The device SDKs support multiple operating systems, such as Linux, Windows, and real-time operating systems. There are SDKs for multiple programming languages, such as C, Node.js, Java, .NET, and Python.
Connectware & Azure IoT Hub Integration
Before proceeding further, first you need to complete the Azure IoT Hub setup. It is required to obtain the device connection string. You can follow the instructions on this page for doing so.
There are multiple possibilities to enable data exchange between Azure IoT Hub and Connectware. These possibilities are described below.
Cybus Azure IoT Hub connector service
Cybus Azure-IoT-Connector is a Connectware service provided by Cybus and available as a docker image. It uses the Azure IoT Hub Device Node.js SDK, and MQTT as the transport protocol. This is a simple solution to send data to the IoT Hub. Most of the complexity is hidden and a simple interface is provided for configuration in the form of „connector configuration“. This service is capable of sending telemetry data and blob data to the IoT Hub. However, the service does not support receiving data from the IoT Hub. As an additional advantage, data buffering is built-in, so that data is stored locally when there is a temporary connection failure to the IoT Hub.
The commissioning file below sends data published on topics ‚/machine/temperature‘ and ‚/machine/vibration‘ as telemetry data to Azure IoT Hub. Before installing the service, make sure you are publishing data on the Connectware broker on topics ‚/machine/temperature‘ and ‚/machine/vibration‘. Further details on setting up the suitable MQTT topics can be found in this article: How to connect an MQTT client to publish and subscribe data.
description: >
Azure IoT Hub connector service
metadata:
name: Azure IoT Hub connector
icon: https://www.cybus.io/wp-content/uploads/2019/03/Cybus-logo-Claim-lang.svg
provider: cybus
homepage: https://www.cybus.io
version: 0.0.1
definitions:
MQTT_ROOT_TOPIC : !ref Mqtt_Root_Topic
parameters:
Azure_Iot_Hub_Connection_String:
type: string
Mqtt_Root_Topic:
type: string
default: machine
resources:
#----------------------------------------------------------------------------
# Cybus Azure IoT Hub Connector Service
#----------------------------------------------------------------------------
azureIoTConnector:
type: Cybus::Container
properties:
image: registry.cybus.io/cybus-services/azure-iot-connector:0.0.5
environment:
LOG_LEVEL: 'info'
CONNECTOR_CONFIG: !sub |
{
"general": {
"name": "Azure Connector"
},
"source": {
"driver": "azure.iot",
"connection": {
"connectionString": "${Azure_Iot_Hub_Connection_String}"
},
"defaults": {
"operation": "write"
}
},
"target": {
"driver": "mqtt",
"connection": {
"protocol": "mqtt",
"host": ${Cybus::MqttHost},
"port": ${Cybus::MqttPort},
"username": ${Cybus::MqttUser},
"password": ${Cybus::MqttPassword}
},
"defaults": {
"operation": "subscribe",
"topicPrefix": "${Mqtt_Root_Topic}"
}
},
"mappings": [
{
"source": {
"name": "temperature",
"type": "telemetry"
},
"target": {
"topic": "temperature"
}
},
{
"source": {
"name": "vibration",
"type": "telemetry"
},
"target": {
"topic": "vibration"
}
}
]
}The resource azureIoTConnector describes the Docker container with the connector service. This service is configured by passing the CONNECTOR_CONFIG environment variable, which in turn contains a JSON object. This JSON object has three important parts (in addition to the general section with the name):
- Source configuration
In the source section, the only configurable parameter is the device connectionString to connect to a particular device on Azure IoT Hub. In this example, this string is defined as a parameter for the service commissioning file and asked during the installation of the service in the Connectware.
- Target configuration
In this section, the MQTT broker connection parameters are defined. Theoretically, any arbitrary MQTT broker can be specified, but in this example, the local Connectware broker is used. The connection settings to the Connectware broker are set by using the global parameters of the Connectware for these values. Optionally, a default MQTT topic prefix can be specified within this section, which is useful when installing multiple services on the same Connectware but which should not interfere with each other.
- Mappings
Every object within the mappings array defines a mapping between source topic which corresponds to IoT Hub device parameter and target MQTT topic (on the Connectware broker). In the above example, we are sending data published on topics temperature and vibration to IoT Hub as telemetry data with corresponding name.
Cybus workbench service
The workbench service is basically a Node-RED instance running securely on the Connectware as a service. This opens up the possibility to install any Node-RED nodes within the service container for quick prototyping as well as for production environment. If your use-case cannot be achieved with the service commissioning file of the previous section, using the workbench might be a suitable choice with higher flexibility and additional tools to prototype your solution using third party Node-RED modules.
node-red-contrib-azure-iot-hub is a Node-RED module that allows you to send messages and register devices with Azure IoT Hub. It contains a total of four Node-RED cloud nodes: Azure IoT Hub, Azure IoT Registry, Azure IoT Hub Receiver and Azure IoT Hub Device Twin. These nodes can be used for configuring more complex data handling.
Tools
Now that we are successfully sending the data to the IoT Hub, we can monitor the transmitted data using various tools as described below.
Azure IoT Tools for Visual Studio Code
Azure IoT Tools is a collection of Visual Studio Code extensions for working with Azure IoT Hub. Using these extensions, you can interact with an Azure IoT Hub, manage connected devices, and enable distributed tracing for your Azure IoT applications. Further, you can easily subscribe to telemetry messages sent to the IoT Hub for quick testing. Please go to Visual Studio Marketplace to find further documentation regarding installation and usage of the Azure IoT tools.
Azure IoT Explorer
Azure IoT Explorer is an open source cross-platform user interface for interacting with Azure IoT Hub without logging into the Azure portal. This tool can be used to perform tasks like creating, deleting and querying devices within the IoT Hub. Device functionalities such as sending and receiving telemetry and editing device and module twin configuration is also possible with this tool. You can find more information about the explorer on its GitHub page.
Summary
This lesson started with a quick introduction to Azure IoT Hub and its various components and SDKs available for integration with other services. Then an example setup to send data from the Connectware MQTT Broker to Azure IoT Hub was described, using a commissioning file with the azure-iot-connector service. Additionally, the IoT Hub Node-RED modules were described, which can be used with Cybus workbench service for prototyping of complex scenarios. Eventually, some of the monitoring tools were mentioned that can be used to monitor data flow between Azure IoT Hub and Connectware.
Where to go from here
You can take a look at more advanced scenarios involving Azure IoT Hub such as Machine Condition Monitoring in Connectware documentation pages.
References
Microsoft. 2020. What Is Azure Iot Edge. [online] Available at: https://docs.microsoft.com/en-us/azure/iot-edge/about-iot-edge [Accessed 27 October 2020].
Prerequisites
In this lesson, we will send data from the Connectware MQTT Broker to AWS IoT.
It is required to set up a Connectware instance and at least one AWS IoT Device. In case of using AWS IoT at the edge, an AWS IoT Greengrass Core has to be set up.
We assume you are already familiar with the Connectware and its service concept. If not, we recommend reading the articles Connectware Technical Overview and Service Basics for a quick introduction. Furthermore, this lesson requires basic understanding of MQTT and how to publish data on an MQTT topic. If you want to refresh your MQTT knowledge, we recommend the lessons MQTT Basics and How to connect an MQTT client to publish and subscribe data.
Introduction
This article is divided into three parts.
First, it provides general information about AWS IoT services and their differences. Feel free to skip this section if you are familiar with AWS IoT and the differences between AWS IoT Core and IoT Greengrass.
Then, the current integration mechanisms between the Connectware and AWS IoT are explained through a hands-on approach.
Finally, the article describes the tools to work with your MQTT use case to prototype, review and monitor the integration scenario.
AWS IoT
AWS IoT is a managed cloud platform that lets connected devices interact easily and securely with cloud applications and other devices. AWS IoT practically supports a nearly unlimited number of devices and messages, and can process and route those messages to AWS endpoints and to other devices reliably and securely.
For AWS IoT, Amazon offers a software development kit available for most popular programming languages and platforms.
AWS IoT Core
AWS IoT Core is the main component to manage devices, their certificates, shadows, Greengrass resources and integration rules to subsequent AWS resources like IoT Analytics. It also offers ways to audit and test your IoT use cases.
AWS IoT Greengrass
AWS IoT Greengrass extends AWS Cloud resources to edge devices, so they can act locally on the generated data, while still using the cloud for management, analytics, and durable storage. It is possible for connected devices to interact with AWS Lambda functions and Docker containers, execute predictions based on machine learning models, keep device data in sync, and communicate with other devices – even when not connected to the Internet.
Greengrass has the following advantages:
- it allows reducing latency in the solution and responding to local events in near real-time.
- it decreases the cost and amount of data devices exchange with the cloud.
- it makes it possible to operate offline even with interrupted connectivity to the cloud.
- it provides secure communication by authenticating devices and encrypting device data for both local and cloud communications so that data is never exchanged without proven identity.
- it simplifies device programming with support for AWS Lambda and Docker containers.
Although in many scenarios these advantages are very significant, one could also mention some drawbacks to make the picture more complete:
- Relying on these advantages also comes with a vendor lock-in to AWS resources.
- The Greengrass initial setup is comparatively heavyweight and complex.
- The advantage of decreased cost must be put into perspective: it is true compared to using AWS IoT without an edge gateway, but Greengrass customers pay per device, the traffic to the cloud and for any other subsequent AWS resources used within Greengrass.
- The learning curve is rather steep for users who have not yet used AWS resources in depth. In those cases it might be easier and more efficient to integrate machines in an IIoT edge solution such as the Connectware with their endpoints, data mapping, transformation rules, and multiple distribution targets (even different cloud providers).
Connectware & AWS IoT Integration
Before proceeding further, first set up AWS IoT Core (and AWS IoT Greengrass for an edge deployment) by following the respective instructions:
To integrate AWS IoT with the Cybus Connectware, the built-in MQTT connector with TLS support is the simplest, most reliable and secure way of communication. For a successful AWS IoT integration, the Connectware does not require more than that. As an additional advantage, the Connectware MQTT connector has also data buffering built-in, so that data is stored locally when there is a temporary connection failure with AWS IoT Core or Greengrass Core.
There can be two integration scenarios.
In the first integration scenario, the Connectware connects directly to the AWS cloud:

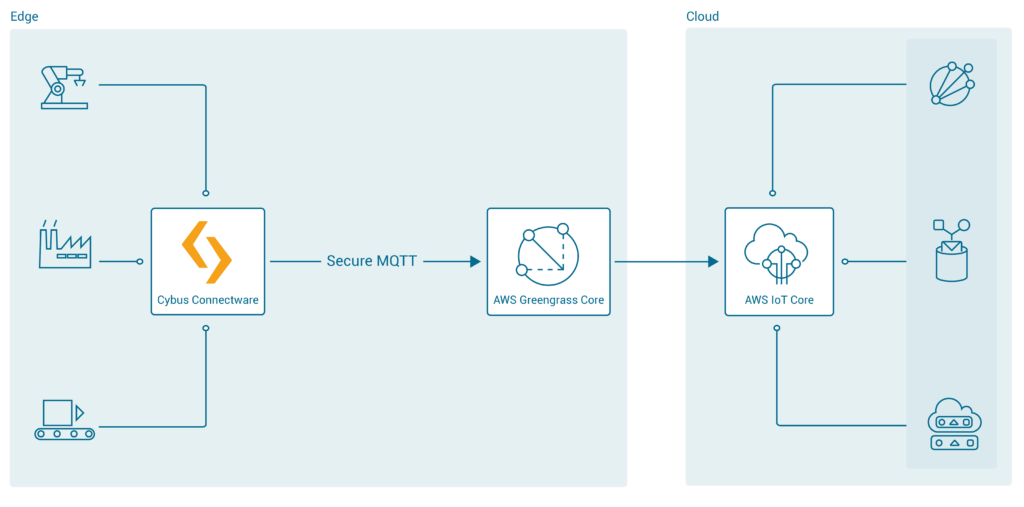

In the second integration scenario, the Connectware is connected to Greengrass Core, which is meant to be deployed as a gateway to the AWS cloud next to the Connectware IIoT Edge Gateway:
Cybus Connectware Service for AWS IoT
For AWS IoT connections using the Connectware, the following has to be configured:
- the AWS IoT ATS endpoint address for a Cybus MQTT connection resource
- the certificates provided after creation of an AWS IoT Core device
- the Amazon root certificate
For details on how to get this information, see the article How to connect AWS IoT and Greengrass. Use the example below to implement a simple AWS IoT service transmitting any data structure in the selected MQTT topic.
The definitions part requires PEM formatted certificates:
- caCert: the root certificate provided by Amazon (AmazonRootCA1.pem)
- clientCert: the device certificate
- clientPrivateKEy: the device private key
You may then configure Endpoint and Mapping resources following the Cybus resource documentation.
The commissioning file below sends any data published on topics ${Cybus::MqttRoot}/test/#topic to AWS IoT into topics TestDevice/$topic with a simple transformation rule.
Make sure you are publishing data on the Connectware broker on the respective topic. The placeholder ${Cybus::MqttRoot} represents the root topic defined as services/<serviceId> after the service is successfully started. The notation #topic/$topic represents a wildcard mapping from any topic name used in subscribe to the same topic name in publish, which has the effect of an MQTT bridge with applied rules like the transformation in the example.
Further details on MQTT topic transformations can be found in the article How to connect an MQTT client to publish and subscribe data.
description: >
Cybus Connectware to AWS IoT Core
metadata:
name: AWS IoT Core Test
version: 1.0.0
provider: cybus
homepage: https://www.cybus.io
parameters:
Aws_IoT_Endpoint_Address:
type: string
description: The ATS endpoint to reach your AWS account's AWS IoT Core
default: <your-aws-account-endpoint-id>-ats.iot.eu-central-1.amazonaws.com
definitions:
# The root CA certificate as PEM format (AmazonRootCA1.pem)
caCert: |
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
# The device certificate in PEM CRT format
clientCert: |
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
# The device private key in PEM format
clientPrivateKey: |
-----BEGIN RSA PRIVATE KEY-----
-----END RSA PRIVATE KEY-----
resources:
awsMqttConnection:
type: Cybus::Connection
properties:
protocol: Mqtt
connection:
host: !ref Aws_IoT_Endpoint_Address
port: 8883
scheme: mqtts
clientId: !sub "${Cybus::ServiceId}-awsMqttConnection"
mutualAuthentication: true
caCert: !ref caCert
clientCert: !ref clientCert
clientPrivateKey: !ref clientPrivateKey
sourceTargetMapping:
type: Cybus::Mapping
properties:
mappings:
- subscribe:
topic: !sub "${Cybus::MqttRoot}/test/#topic"
publish:
connection: !ref awsMqttConnection
topic: TestDevice/$topic
rules:
- transform:
expression: |
(
{
"deviceId": "TestDevice",
"payload": $
}
)Changes for AWS IoT Greengrass
In order to connect to a Greengrass Core, the example service commissioning file needs several changes:
- Use the hostname/ip of the Greengrass Core instead of the ATS endpoint
- Use the Greengrass Group Certificate Authority instead of the Amazon Root CA
- Configure the MQTT clientId, which needs to be equal to the device name for which the certificates are configured.
See the article How to connect AWS IoT and Greengrass about how to get the Greengrass Group Certificate Authority.
parameters:
...
awsGreengrassClientId:
type: string
default: TestDeviceEdge
...
resources:
greengrassTestDeviceEdgeMqttConnection:
type: Cybus::Connection
properties:
protocol: Mqtt
connection:
host: !ref Greengrass_Core_Endpoint_Address
port: 8883
scheme: mqtts
clientId: !ref awsGreengrassClientId
mutualAuthentication: true
caCert: !ref caCert
clientCert: !ref clientCert
clientPrivateKey: !ref clientPrivateKey
...Tools
To implement or maintain a new IIoT Edge integration use case as fast and reliable as possible, there are suitable tools for working with MQTT, Connectware and AWS IoT.
AWS Command Line Interface (CLI)
The AWS CLI generally helps with any task on AWS. In this case we have at least two tasks being most efficiently completed using the CLI:
1) Find out the AWS IoT ATS endpoint defined for your AWS account:
aws iot describe-endpoint --endpoint-type iot:Data-ATSThe response contains the AWS account specific ATS (Amazon Trust Services) endpoint address to be used as the MQTT hostname:
{
"endpointAddress": "a7t9...1pi-ats.iot.eu-central-1.amazonaws.com"
}2) Get the Greengrass Group Certificate Authority certificate in case of using AWS IoT Greengrass. You then need the following for the caCert setting in the service commissioning file instead of the Amazon Root CA:
aws greengrass list-groups
aws greengrass list-group-certificate-authorities --group-id "4824ea5c-f042-42be-addc-fcbde34587e7"
aws greengrass get-group-certificate-authority --group-id "4824ea5c-f042-42be-addc-fcbde34587e7" \
--certificate-authority-id "3e60c373ee3ab10b039ea4a99eaf667746849e3fd87940cb3afd3e1c8de054af"The JSON Output of the latter call has a field PemEncodedCertificate containing the requested information which needs to be set as the caCert parameter similar to this:
-----BEGIN CERTIFICATE-----
MIIC1TCCAb2gAwIBAgIJANXVxedsqvdKMA0GCSqGSIb3DQEBBQUAMBoxGDAWBgNVBAMTD3d3dy5leGFtcGxlLmNvbTAeFw0yMDEwMDUwNTM4MzRaFw0zMDEwMDMwNTM4MzRaMBoxGDAWBgNVBAMTD3d3dy5leGFtcGxlLmNvbTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAM/0NrS45cm0ovF3+8q8TUzj+E3UH8ldnJJPCQFGMaL+7PoxbO0fYf3ETkEW+dijIZOfus9dSPX7qBDbfilz/HtNppGDem4IjgC52iQl3B1R7TvU8yLNliv43uDDUd+PkzW1cWbUuykr5QPG2sIDSANukosvRdFKO4ydP0Hr9iUdOfbg4k6hMFCrzJubKQqhcBTSsxGtl78abx0Q49shuWr9RRjzqE6mRFa4h0DrKBstgAfmsDRGm4ySBCM7lwxphSsoejb6l39WI/MNU7/U7cGj26ghWHAWp8VCksBOqma8tmr/0BuqcCgKJYaDr1tf4SVxlwU20K+jz0pphdEwSj0CAwEAAaMeMBwwGgYDVR0RBBMwEYIPd3d3LmV4YW1wbGUuY29tMA0GCSqGSIb3DQEBBQUAA4IBAQBkcKC3cgHJGna6OxA5QM3dGM5pEiSXyZt5HWoW8z6wUlYtir6U+mWIb9yg7zaSy9nUOqU4sizQh1HG/Mq9K2WbflGafvfN0wW16uyINdjcfGYDh43UDkXHr5Xzky5XIgt0Fx4BWmjgbLYsza7qpbeIg5ekUYPYQw1Ic2sNpyncmS0eutg4tAO7uzDu1x84WPcZzUjDHKYfupuDXkWroPnHTAxlJ6vtgW976c3Z5rQ5l8bUysWhLBEM8q2OP/zmGDo7fpUHYOKo5qU4h7vGD3t0Pb4ufPOd7XtHuY6HsI2cAPV3tpuetHH6wyAQTG9luhdYrZjAp+ZvlwBm+9nXYp/Y
-----END CERTIFICATE-----Cybus workbench service
The Workbench service is basically a Node-RED application running securely on the Connectware as a service. This opens up the possibility to install any Node-RED nodes within the service container for quick prototyping as well as for the production environment. If your use-case cannot be achieved with the above service commissioning file, using the workbench will give you some flexibility and additional tools to prototype your solution using Node-RED modules.

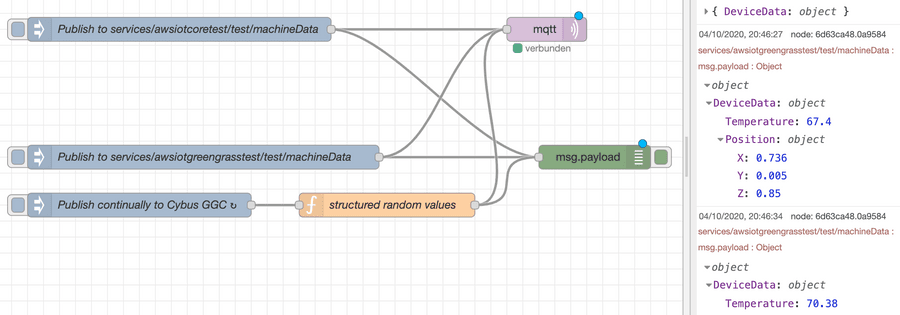

In case of AWS IoT, MQTT connection is enough for most integration scenarios. You may use simple injection nodes and some random value generator in order to implement and test the use northbound to AWS IoT:
If there are other requirements such as working with shadow devices and other AWS resources, e.g. as part of the IoT Greengrass Core deployment, you may want to use additional Node-RED modules supporting AWS.
AWS IoT SDK
If it comes to more complex data management and handling, you may want to use the AWS IoT Device SDK to create a specific Connector Service for Connectware to cover your requirements.
In most cases, it is enough to process any kind of device data and apply rules to them on the Connectware as the most powerful edge gateway tool. Similar capabilities can be used on the near-cloud gateway AWS IoT Greengrass or AWS IoT Core itself to manage rules and transformations near the shadow devices definitions.
What works best depends on your business strategy and technical constraints.
AWS IoT Core, Analytics and other AWS resources
Now that we are successfully sending the data to the IoT Core, we can monitor the transmitted data using various AWS resources.

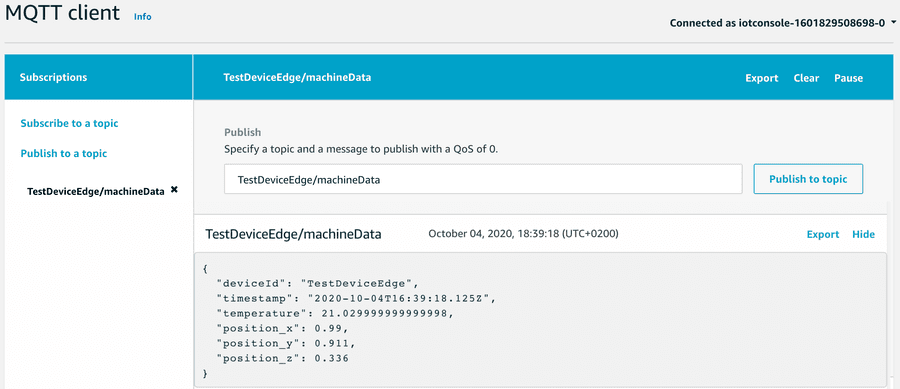

The obvious tool is the AWS IoT Core MQTT Client offered on the AWS IoT console. With this tool you regularly subscribe to your topic defined in the service commissioning file for outgoing data:

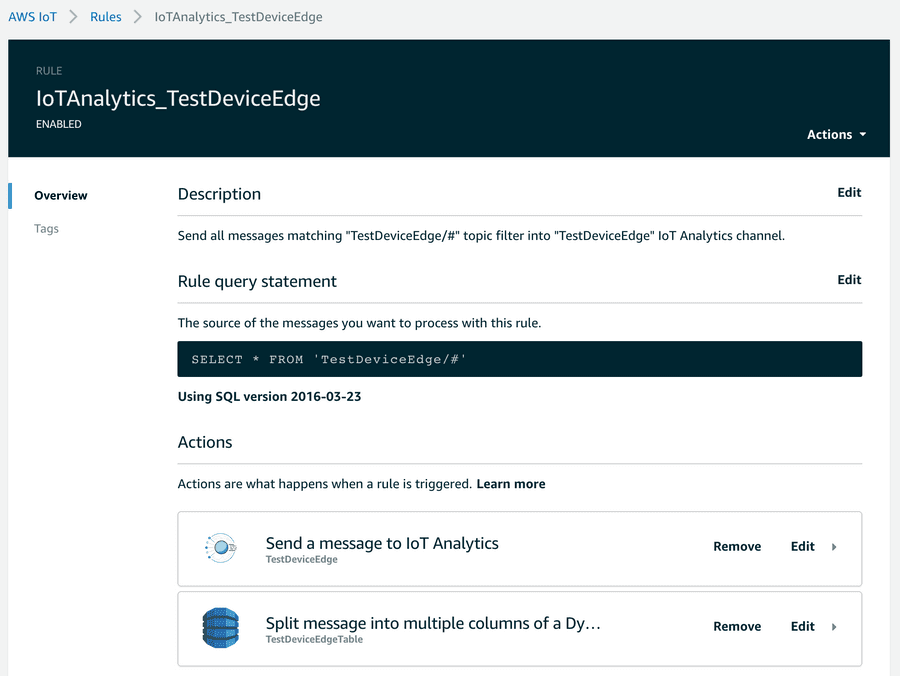

In order to make use of AWS resources, you define AWS IoT rules and define actions appropriately, e.g. transmission to IoT Analytics and a DynamoDB table:
The AWS IoT Console helps to quickly implement data transfer to these endpoints.
An example of how to work with these resources could be a change to the transformation mentioned above to better meet the requirements using the fast and easy mapping support of the Connectware. Given a requirement to flatten an original data object injected into the internal topic, you can easily transform that data using a Connectware transformation rule using Jsonata:
Given a structured object:
"DeviceData": {
"Temperature": <decimal>,
"Position": {
"X": <decimal>,
"Y": <decimal>,
"Z": <decimal>
}
}As an example, the above mentioned mapping could be then enhanced for flattening the elements and adding a timestamp:
sourceTargetMapping:
...
rules:
- transform:
expression: |
(
{
"deviceId": "TestDeviceEdge",
"payload": $
}
)
- transform:
expression: |
(
{
"deviceId": "TestDeviceEdge",
"timestamp": $now(),
"temperature": $.payload.DeviceData.Temperature,
"position_x": $.payload.DeviceData.Position.X,
"position_y": $.payload.DeviceData.Position.Y,
"position_z": $.payload.DeviceData.Position.Z
}
)After implementing the use case, you may see the options to shorten things a bit. The Connectware then plays its strength with fast integration processes near the connected devices, where most of the data pre-processing can be realized with low latency and fewer costs before transmitting it to the cloud.

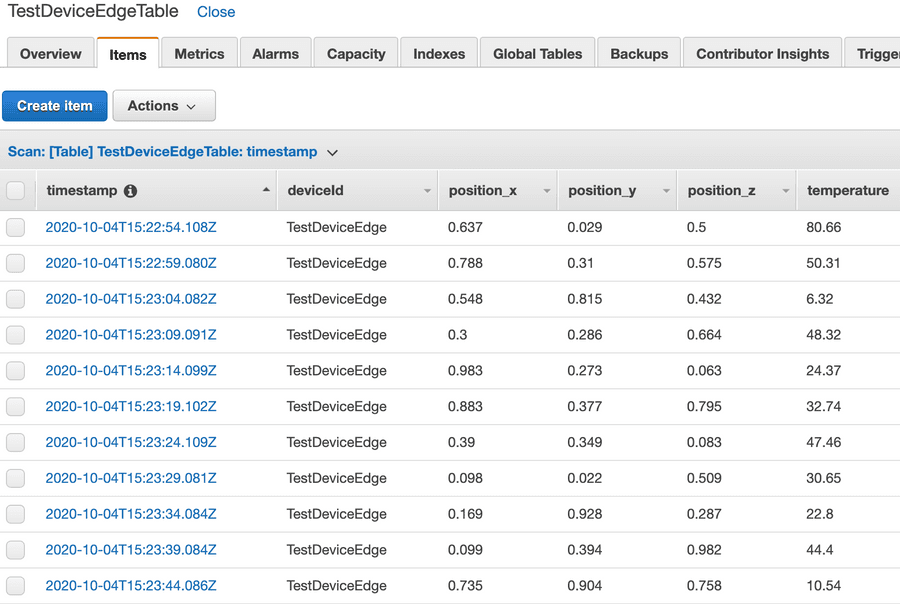

The enhanced transformation rule within the Connectware mentioned above may be inspired by a requirement to write the data in a well-structured database:

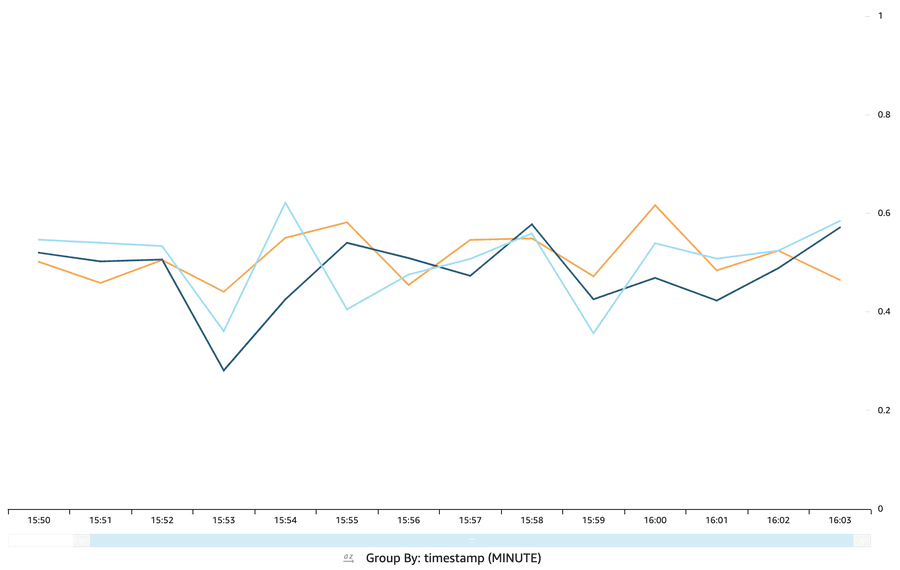

Or the requirement was to create some graph with Amazon Quicksight:
If it comes to the AWS Cloud, there is a vast amount of resources that can be useful to create your IoT Application. You should especially have a look at lambda functions that could be deployed to your IoT Greengrass Core instance.
Other new tools like AWS IoT SiteWise or AWS IoT Things Graph may be useful to build your IoT applications faster with easier management and monitoring.
Summary
This lesson first offered a brief introduction to AWS IoT and its components available for integration with other services. Then it explained how to send data from the Connectware MQTT Broker to AWS IoT Core or Greengrass Core with a simple commissioning file using the built-in MQTT connector of the Connectware. Furthermore, the Cybus workbench service for prototyping more advanced scenarios was presented. The lesson finished with a description of some basic and advanced tools used to monitor data flow between AWS IoT and Connectware.
Where to go from here
Cybus provides an example with sample service commissioning files, and some more technical details in the Github project How to connect AWS IoT and Greengrass.
From there you may have further ideas on how to benefit from the IIoT Edge capabilities of the Connectware compared to AWS IoT and Greengrass.
